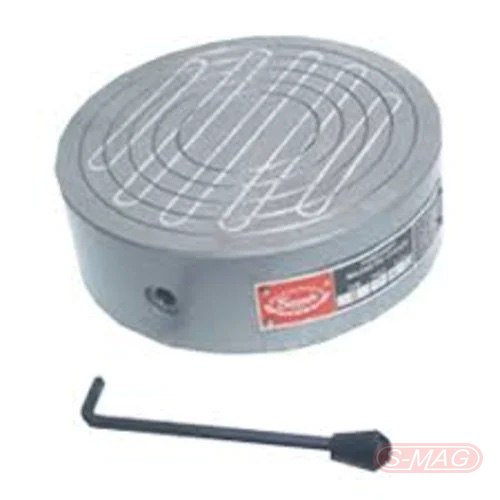

Circular Universal Chuck
Radial pole chuck for turning and rotary grinding
- Radial poles for turning and rotary grinding
- Holds small, thin and large parts on one chuck
- Diameters up to 600 mm
- Permanent neodymium magnets, no power supply
- Electromagnetic builds to customer sizes
Overview - Circular Universal Chuck
One circular chuck for mixed work
Radial poles run from the centre to the edge, so a part is held across several poles wherever it sits on the face. Small, thin, large and thick parts are all held well.
A light hold position lets the operator set the part before the full hold. Used on lathes, rotary grinders and inspection tables. Made up to 600 mm diameter, with electromagnetic versions to order.
Technical Data
- Diameters: up to 600 mm
- Poles: radial, for turning and rotary grinding
- Magnets: permanent neodymium
- Electromagnetic builds available to customer sizes
