Alnico Shallow Pot Magnets

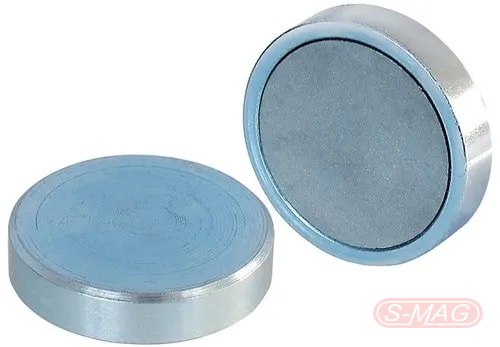

Shallow cup magnets for clamping, fixtures and hanging
- Magnet set in a steel cup that focuses the field on one face
- Example size 25 mm diameter by 8 mm thick

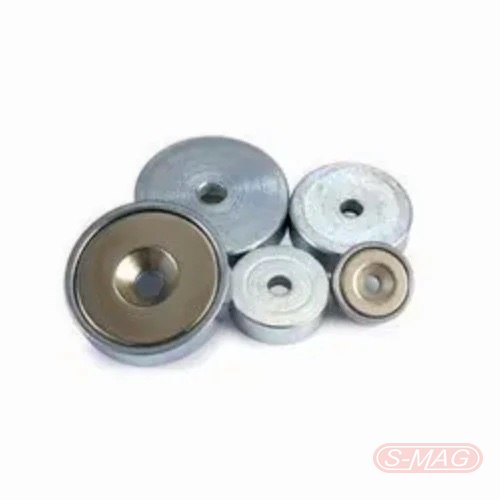

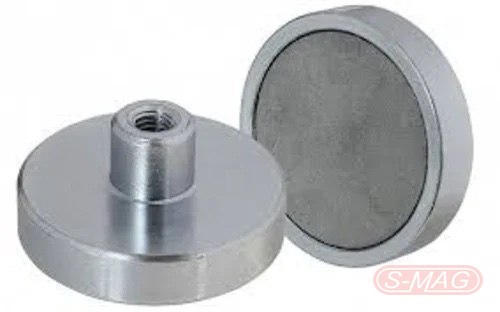

- Plain, threaded, countersunk or hook fittings
- Suited to heat, up to 450 degrees Celsius in alnico
- Custom diameters and heights to order
Overview - Alnico Shallow Pot Magnets
A cup that multiplies the hold
The steel cup carries the field from the back of the magnet round to the working face. The pull on that face is several times what the bare magnet would give, and the magnet is protected from knocks.
Shallow pots suit thin plate and fixtures where height is limited. They hold jigs, guards, sensors, signs and tools, and hang cables and hoses from steel frames. A countersunk hole or a threaded stud bolts the magnet in place.
Want to discuss this in more detail? Get in touch
Technical Data
- Example size: 25 mm diameter x 8 mm thick
- Build: magnet set in a steel cup that concentrates the field on the working face
- Fittings: plain, threaded or hook
- Custom diameters and heights on request
