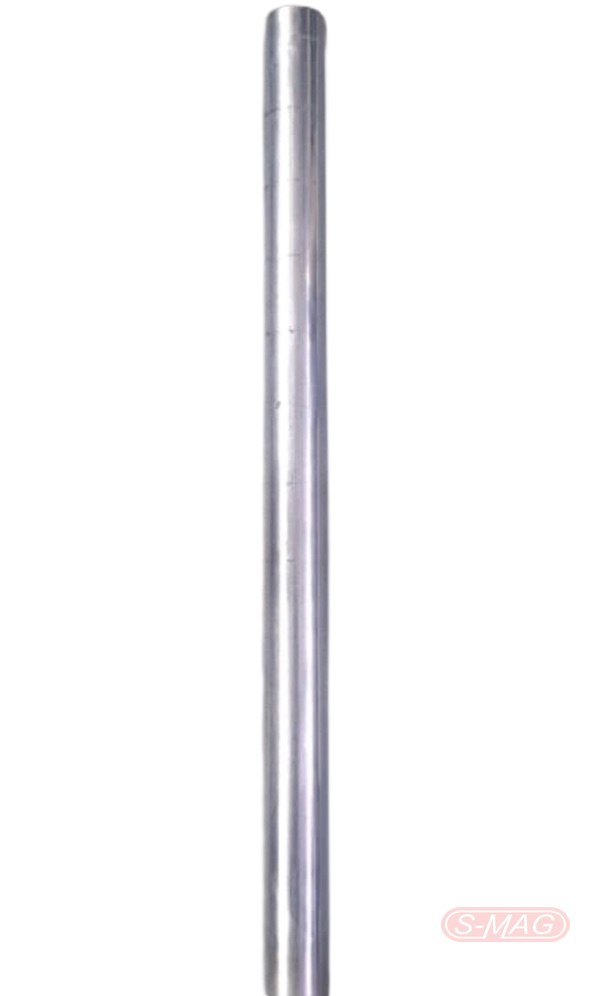

Neodymium Magnetic Rod
Sealed separator rods, 7,000 to 13,500 gauss
- Four strengths, from standard to extreme high
- 25.4 mm standard diameter; lengths to drawing
- Round, square and triangle sections
- Watertight 304 stainless tube, welded and polished
- Sold singly or built into grids and housings
Overview - Neodymium Magnetic Rod
The part every separator is built from
Each rod is a sealed stainless tube holding neodymium magnets and steel pole pieces, machined and welded at our works. Rods are supplied singly, built into grids with side plates, or fitted into an existing filter housing.
Standard rods are 7,000 to 8,000 gauss. High strength rods go to 9,000, super high strength to 11,000 and extreme high strength to 13,500 gauss. Ferrite and Ferrearth rods are made for coarse iron at lower cost.
The tube is watertight, so rods work in liquid lines as well as dry product. Rare earth rods should stay below 100 degrees Celsius. Every rod comes with a tested certificate of magnetic strength.
Technical Data
- Standard strength: 7,000 to 8,000 gauss
- High strength: 8,000 to 9,000 gauss
- Super high strength: 9,500 to 11,000 gauss
- Extreme high strength: 12,000 to 13,500 gauss
- Magnet material: NdFeB grades N35 and N45; ferrite (3,000 gauss) and Ferrearth (5,000 gauss) versions available
- Tube: 304 stainless steel, fully welded and polished, watertight
- Standard diameter: 25.4 mm (1 inch); round, square and triangle sections; lengths to drawing
- Temperature limit: 100 deg C for rare earth rods
- Supplied with a tested certificate of magnetic strength
