Housed Underflow Magnetic Separator
Drawer magnets inside an enclosed duct
- Bolts between flanges in a closed duct
- Staggered rows of neodymium rods across the flow

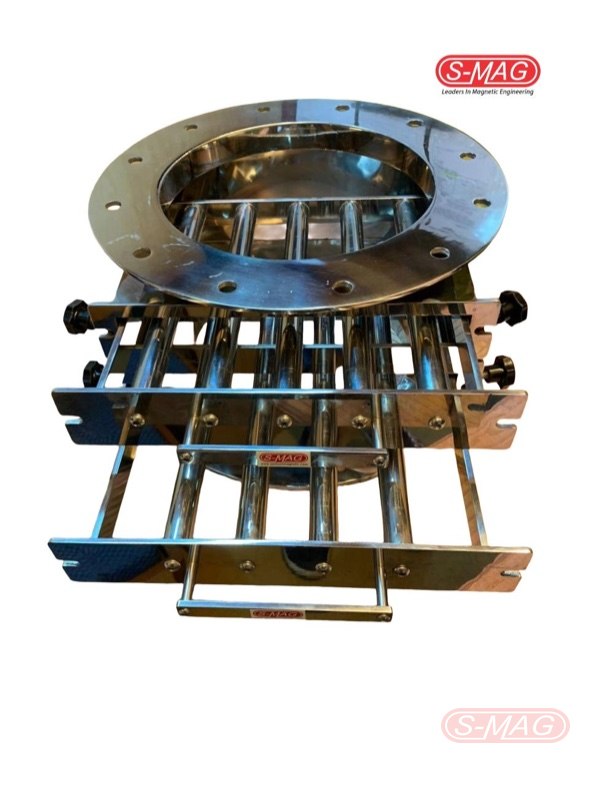

- Drawers pull out for cleaning; the duct stays closed
- Fully enclosed, so dust stays in and fingers stay out
- Painted mild steel or full stainless steel
Overview - Housed Underflow Magnetic Separator
Separation inside the duct
When the product runs inside closed ducting, the separator has to live in the line. This housing bolts between flanges and puts staggered rows of rods in the path of everything that passes.
Cleaning works like our bullet housing. Unclamp the door, draw the rods out, wipe them and slide them back. The duct joints are never broken. Rods are available from 7,000 to 13,500 gauss.
Technical Data
- Standard strength: 7,000 to 8,000 gauss
- High strength: 8,000 to 9,000 gauss
- Super high strength: 9,500 to 11,000 gauss
- Extreme high strength: 12,000 to 13,500 gauss
- Magnet material: NdFeB grades N35 and N45; ferrite (3,000 gauss) and Ferrearth (5,000 gauss) versions available
- Tube: 304 stainless steel, fully welded and polished, watertight
- Standard diameter: 25.4 mm (1 inch); round, square and triangle sections; lengths to drawing
- Temperature limit: 100 deg C for rare earth rods
- Supplied with a tested certificate of magnetic strength
