Housed Bullet Magnetic Separator
Two drawers of rods in a flanged in-line housing
- Round flanged inlet and outlet for in-line fitting
- Two sliding drawers of neodymium rods in offset rows
- Toggle clamped door; drawers pull out for cleaning
- Painted mild steel or full stainless steel
- Sized to the line bore and throughput
Overview - Housed Bullet Magnetic Separator
Every path through the housing passes a magnet
Product falls through two rows of rods, offset so that no particle can drop straight through. Nails, wire, swarf and fine iron hold to the rods while the product carries on down the line.

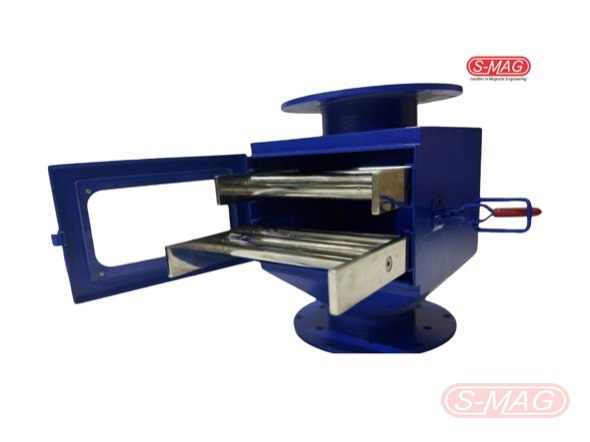

To clean, open the toggle clamped door and draw each drawer out. The rods come clear of the product zone and are wiped down in seconds. The line does not need to be opened.
Used in gravity and lean phase pneumatic lines in milling, plastics, chemicals and food. Made to your bore and flange pattern.
Technical Data
- Standard strength: 7,000 to 8,000 gauss
- High strength: 8,000 to 9,000 gauss
- Super high strength: 9,500 to 11,000 gauss
- Extreme high strength: 12,000 to 13,500 gauss
- Magnet material: NdFeB grades N35 and N45; ferrite (3,000 gauss) and Ferrearth (5,000 gauss) versions available
- Tube: 304 stainless steel, fully welded and polished, watertight
- Standard diameter: 25.4 mm (1 inch); round, square and triangle sections; lengths to drawing
- Temperature limit: 100 deg C for rare earth rods
- Supplied with a tested certificate of magnetic strength
