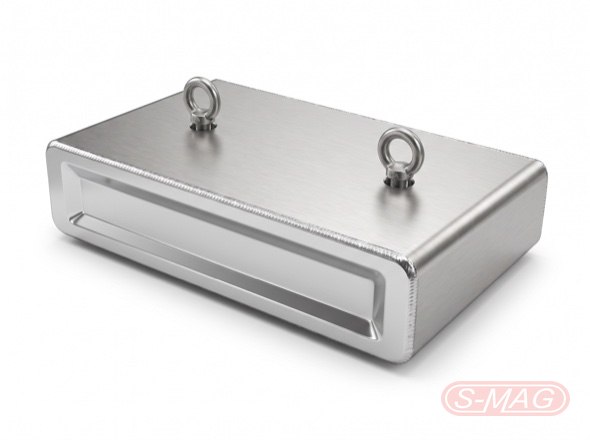

Deep Field Magnetic Plate Separator

Magnets: anisotropic ferrite (ceramic); neodymium builds for deeper fields
Encapsulation: LM-6 cast aluminium or SS 304/316
Sizes: a range of plate sizes and magnetic depths, made to drawing
Mounting: over chutes and conveyors; hinged easy-clean frames on request

A plate magnet that reaches through a deep product bed

Mounts above a flat or troughed conveyor, or in a chute
Deep field pulls iron up through the bed
LM-6 cast aluminium or SS 304/316 encapsulation
Ferrite or neodymium builds
No power and no running cost

Overview - Deep Field Magnetic Plate Separator

Tramp iron out of a thick flow

A plate magnet over a conveyor pulls bolts, nuts, wire and tool pieces up out of the moving product. A deep field version is built for thick beds, where a standard plate would only reach the top layer.

The plate is cleaned by swinging it clear of the belt and wiping the face. There is nothing to drive and nothing to replace.

Steel belt support rollers under the magnet should be changed to non-magnetic ones so that they do not draw the field away. Plates are made to the belt width and bed depth.
